Water Treatment Engineers & Microvision Enviro Equipment Pvt Ltd. Are one of the leading players in the market providing the complete range of effluent treatment products & end-to-end services. Backed by the NABL accredited testing lab & development capabilities, we take extra care in understanding the client’s environment woes & providing the most efficient & durable solution. We are an ISO certified company with separate departments for design, drawing, manufacturing & commissioning. We provide the whole basket of products starting from pre-treatment, filtration, STP, ETP, RO, MEE, sludge-handling systems and many more based on latest technologies such as MBR, MBBR, SBR etc. Our quality workmanship and superior quality of design have clearly reflected in the repeated client turnover & working of the plants.

Product Categories

  • Flash Mixer
  • Flocculator
  • Mechanical Screens
  • Chemical Dosing Systems
  • Oil Skimmers
  • Pressure Sand Filters
  • Activated Carbon Filters
  • Bag Filters
  • Cartridge Filters
  • Ultra/Nano Filtration
    • Raw water RO plants
    • Demineralized water plants
    • Softening plants
    • UV Systems
    • Modular STPs
    • Grey Water Treatment plants
    • MBR/MBBR
    • Clarifier
    • Clari-flocculator
    • Tube Settler
    • MBR/SBR/SBBR
    • Primary & Biological Treatment
    • Diffused Aeration/DAF systems
    • 4-stage ETP RO
    • Multi-effect Evaporators (MEE)
    • Caustic Recovery Plants (CRP)
    • MEE feed pretreatment units
    • Sludge Dryers
    • Decanters
    • Belt Press
    • Screw Press
    • Filter Press
    • Multi-cyclones
    • Wet Scrubbers
    • Ammonia removal systems
    • FRP tanks
    • MS/MSRL tanks & vessels

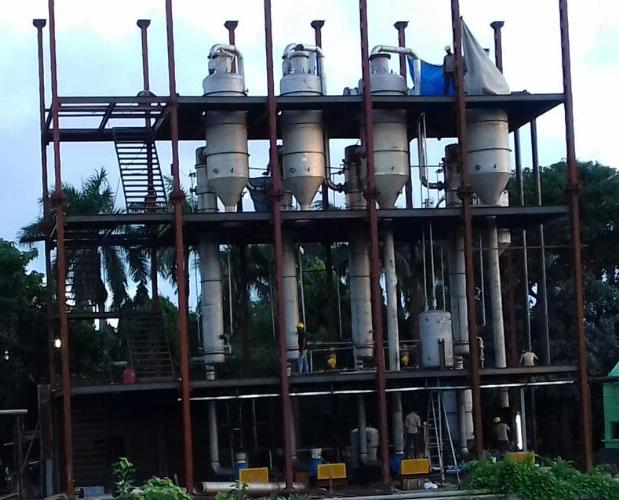

    Caustic Recovery Plant

    In the mercerization process in textiles, a large amount of dilute caustic is produced as waste during the finishing process. This creates too many issues in the treatment of effluent as well as leads to wastage of caustic that needs to be recovered. Caustic recovery plants are a segment of Multi effect evaporators that convert this weak lye into concentrated streams of caustic up to almost 500 gpl. These plants work on the principle of heating the liquor to its boiling point and reusing the vapors to further heat the incoming feed. The streams are recirculated in multiple stages based on the final desired concentration needed. CRP plants have a lot many advantages in textiles that are shared below:
    • Recovery and reuse of caustic soda
    • Low pH and excellent quality of vapor condensate.
    • Sustainability in mercerization process.
    • Return on investment within a year.
    • No alkaline wastewater.
    • No heating steam contamination
    • Generation of hot water from waste energy.
    • Reduced TDS load on ETP.
    • Condensate can be recycled.
    • Low acid consumption in ETP.
    • Knit mercerizing
    • Woven Mercerizing
    • Denim Mercerizing
    • Yarn Mercerizing
    • Weight reduction machine for polyester.

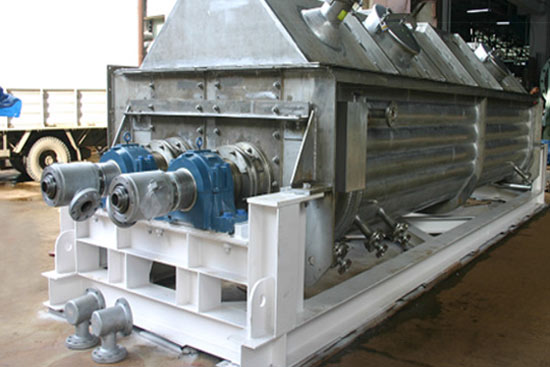

    Sludge Dryer

    The disposal of sludge is becoming a grave issue for most of the organizations as even though almost 80% of the sludge is water; the organizations still have to pay the hauling costs by kg. These limitations of mechanical drying create a need for alternative treatments such as thermal drying. Our Sludge dryers work on the basis of indirect heat conduction via twin revolving hollow shafts welded with hollow paddles. The spiral paddle blade system breaks the sludge down while recirculating. Indirect heat application has the further benefit of more efficient temp control and heat transfer while avoiding burning or smoldering of sludge. Our dryers are designed in a very compact manner and can be fit directly under the filter press. They are unaffected by the sticky, adhesive or viscous nature of the sludge and require minimal maintenance.
    • Reduced sludge disposal costs.
    • Reduced Sludge Volume
    • No foul smell or spillages
    • No manual handling or landfilling required.
    • No sludge drying beds required. o Dried sludge can be reused.
    • Low Steam utility, power consumption and space utilization
    • Sludge handling/disposal costs for ETP sludge are really high.
    • In our paddle type sludge dryer, 85% moisture sludge can be reduced to <5% moisture.
    • Powdered dried sludge can be used in co-processing such as: Cement co-processing, Brick manufacturing, As manure in agriculture, Coal co-processing in power plants.

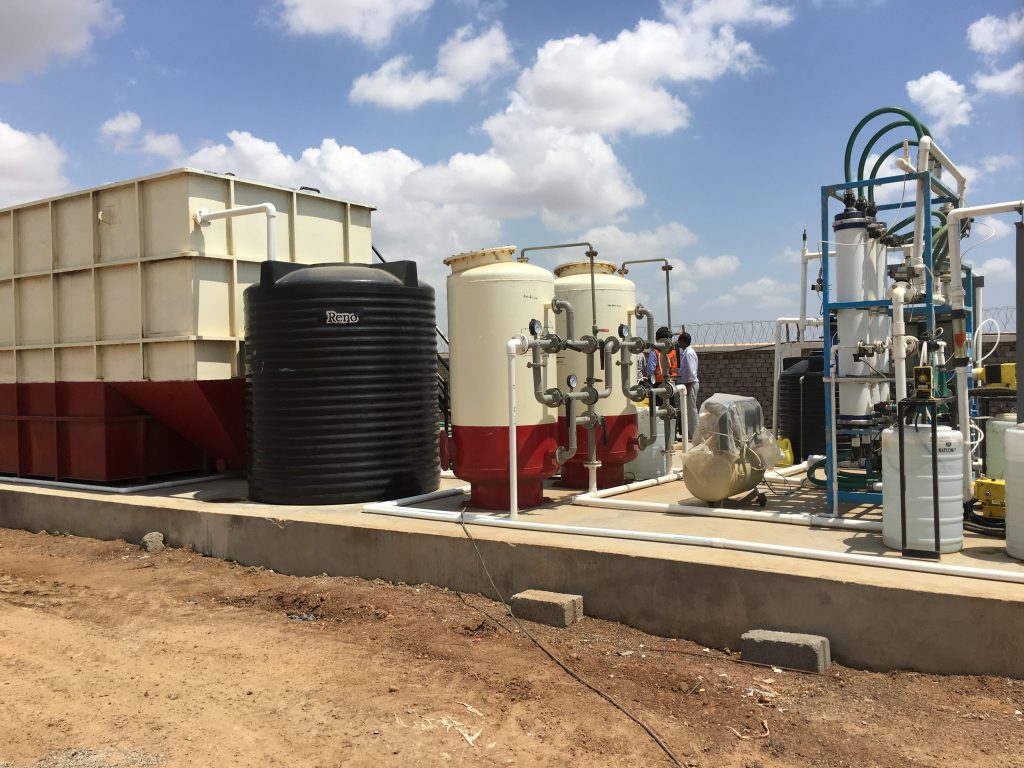

    Packaged Sewage Treatment Plant

    Our trademark modular sewage treatment plants are designed by technical experts who have ample experience meeting & exceeding the standard norms set by the pollution control boards. The plants are compact, made-to-order and configured to meet various population sizes and complex individual site demands. They are available in pre-fabricated, containerized or underground forms with a capacity ranging from 1 m3/day to 500 m3/day. These systems are based on the most advanced MBR/MBBR technology that allows us to deliver clean water ready for reuse in all applications. The systems can be rapidly installed to meet urgent needs, are robust & built to last and can be operated in residential areas with no olfactory odor nuisances.
    • Indigenously developed packaged STPs with a capacity from 5-500 m3/day that meets all individual unit requirements.
    • Ideal for hotels, industries, hospitals, holiday resorts, schools, housing colonies, industrial / commercial complex, shopping malls, residential apartments etc.
    • Simple to operate, requires minimal maintenance, power, land and consumables. Available in semi or fully automatic modes.
    • Manufactured in SS/ MS (with FRP lining or epoxy coated or molded FRP) as per client requirement.
    • Reusability of treated water, no foul odor, low footprint, negligible sludge generation, easy mobility & installation.

    How to filtration works:
    • Primary solid separation
    • Aeration(MBBR)
    • Sec-solid separation
    • Disinfection
    • Filtration
